TP-Link Omada EAP650 access point
VERIFIED RECORDAccess Points

TP-Link

TP-Link Omada EAP650

Model EAP650

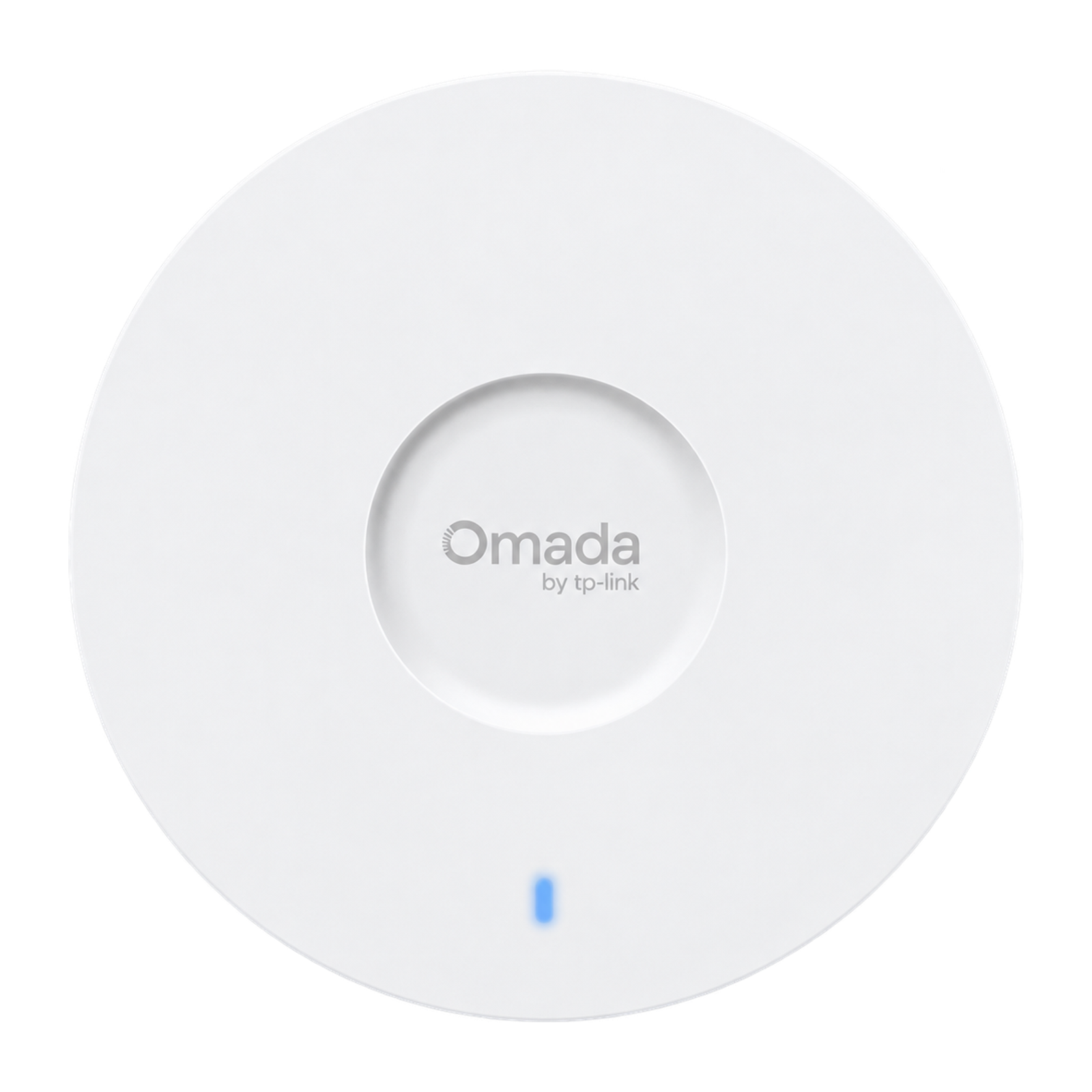

TP-Link Omada EAP650 is a Wi-Fi 6 wireless access point with a 1 GbE uplink and PoE+ (802.3at) power (up to 15.5 W).

AX3000 dual-band Wi-Fi 6 ceiling access point (2,402 Mbps on 5 GHz plus 574 Mbps on 2.4 GHz) with one Gigabit port, 802.3at PoE or DC power and Omada Mesh support. TP-Link rates it for 140 m² and 250+ concurrent clients.

Compare this product
Manufacturer-sourced. Core specifications were checked against 1 verified official source — last verified . How we verify data

TP-Link Omada EAP650 specifications

Verified TP-Link Omada EAP650 specifications
Maximum power15.5 W
Ethernet uplink1,000 Mbps
Wi-Fi generationWi Fi 6
PoE requirementPoE+ (802.3at)
Maximum clients250
MountingCeiling
Coverage area140 m²

Where this product fits

Match the uplink speed and PoE requirement to your switch, then validate placement and access-point count for the building.

Compare more access pointsEstimate access-point countBuild and validate a complete network

Deterministic checks

Compatible switches

Results check port availability, Ethernet speed, PoE standard, and the declared total PoE budget. Manufacturers are grouped for faster scanning; expand one to inspect every rule.

MikroTik

6 products

105
MikroTik CRS320-8P-8B-4S+RMCompatible
  • The required Ethernet port is available at the required speed and power standard.
  • The devices may draw up to 15.5 W from a 963 W budget, leaving 947.5 W headroom.
MikroTik CRS305-1G-4S+INIncompatible
  • There are not enough PoE+ (802.3at) Ethernet ports for TP-Link Omada EAP650.
  • The selected switch has no declared PoE budget, but the devices may draw up to 15.5 W.
MikroTik CRS309-1G-8S+INIncompatible
  • There are not enough PoE+ (802.3at) Ethernet ports for TP-Link Omada EAP650.
  • The selected switch has no declared PoE budget, but the devices may draw up to 15.5 W.
MikroTik CRS310-8G+2S+INIncompatible
  • There are not enough PoE+ (802.3at) Ethernet ports for TP-Link Omada EAP650.
  • The selected switch has no declared PoE budget, but the devices may draw up to 15.5 W.
MikroTik CRS317-1G-16S+RMIncompatible
  • There are not enough PoE+ (802.3at) Ethernet ports for TP-Link Omada EAP650.
  • The selected switch has no declared PoE budget, but the devices may draw up to 15.5 W.
MikroTik CRS326-24G-2S+RMIncompatible
  • There are not enough PoE+ (802.3at) Ethernet ports for TP-Link Omada EAP650.
  • The selected switch has no declared PoE budget, but the devices may draw up to 15.5 W.

NETGEAR

5 products

005
NETGEAR GS108Incompatible
  • There are not enough PoE+ (802.3at) Ethernet ports for TP-Link Omada EAP650.
  • The selected switch has no declared PoE budget, but the devices may draw up to 15.5 W.
NETGEAR GS305Incompatible
  • There are not enough PoE+ (802.3at) Ethernet ports for TP-Link Omada EAP650.
  • The selected switch has no declared PoE budget, but the devices may draw up to 15.5 W.
NETGEAR GS305EIncompatible
  • There are not enough PoE+ (802.3at) Ethernet ports for TP-Link Omada EAP650.
  • The selected switch has no declared PoE budget, but the devices may draw up to 15.5 W.
NETGEAR GS308Incompatible
  • There are not enough PoE+ (802.3at) Ethernet ports for TP-Link Omada EAP650.
  • The selected switch has no declared PoE budget, but the devices may draw up to 15.5 W.
NETGEAR GS308EIncompatible
  • There are not enough PoE+ (802.3at) Ethernet ports for TP-Link Omada EAP650.
  • The selected switch has no declared PoE budget, but the devices may draw up to 15.5 W.

TP-Link

3 products

201
TP-Link Omada SG2218PCompatible
  • The required Ethernet port is available at the required speed and power standard.
  • The devices may draw up to 15.5 W from a 150 W budget, leaving 134.5 W headroom.
TP-Link Omada SG3210XHP-M2Compatible
  • The required Ethernet port is available at the required speed and power standard.
  • The devices may draw up to 15.5 W from a 240 W budget, leaving 224.5 W headroom.
TP-Link Omada SG3210X-M2Incompatible
  • There are not enough PoE+ (802.3at) Ethernet ports for TP-Link Omada EAP650.
  • The selected switch has no declared PoE budget, but the devices may draw up to 15.5 W.

Ubiquiti

4 products

301
UniFi Lite 8 PoECompatible
  • The required Ethernet port is available at the required speed and power standard.
  • The devices may draw up to 15.5 W from a 52 W budget, leaving 36.5 W headroom.
UniFi Pro 8 PoECompatible
  • The required Ethernet port is available at the required speed and power standard.
  • The devices may draw up to 15.5 W from a 120 W budget, leaving 104.5 W headroom.
UniFi Pro Max 16 PoECompatible
  • The required Ethernet port is available at the required speed and power standard.
  • The devices may draw up to 15.5 W from a 180 W budget, leaving 164.5 W headroom.
UniFi Flex Mini 2.5GIncompatible
  • There are not enough PoE+ (802.3at) Ethernet ports for TP-Link Omada EAP650.
  • The selected switch has no declared PoE budget, but the devices may draw up to 15.5 W.
