MikroTik CRS320-8P-8B-4S+RM network switche
VERIFIED RECORDNetwork Switches

MikroTik

MikroTik CRS320-8P-8B-4S+RM

Model CRS320-8P-8B-4S+RM

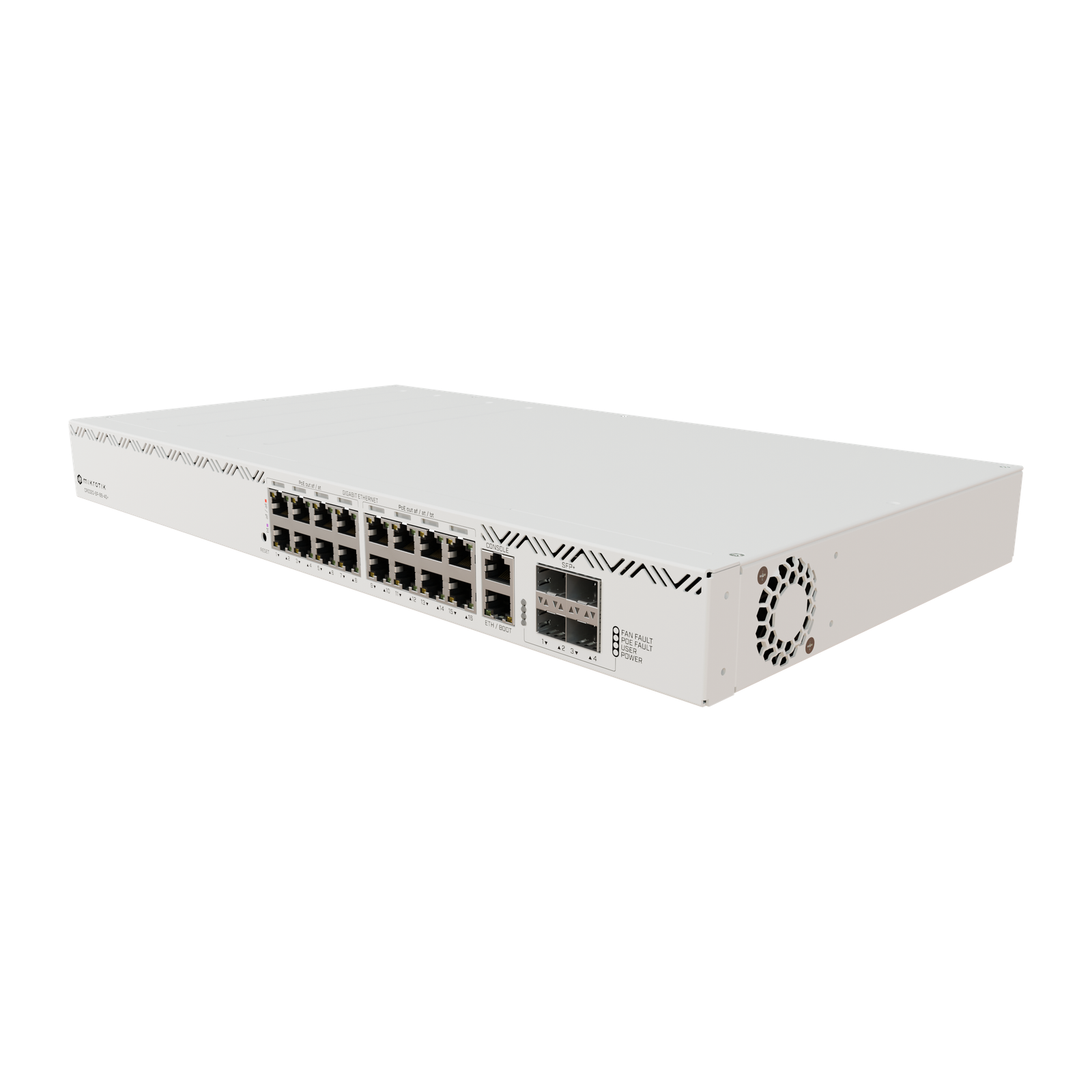

MikroTik CRS320-8P-8B-4S+RM is a managed PoE network switch with 8 × 1 GbE PoE+ (802.3at) ports, 8 × 1 GbE PoE++ (802.3bt) ports, 1 × 1 GbE port, 4 SFP+ slots and a 963 W PoE budget (the included 600 W power supply cannot deliver it alone; an optional second PSU is required).

Rack switch with eight 802.3af/at PoE+ and eight 802.3bt PoE++ Gigabit ports (up to 90 W per port), a Gigabit management port and four 10G SFP+ uplinks. MikroTik lists 963 W total PoE output, but the switch ships with one 600 W power supply; a second hot-swappable PSU raises available power to 1,150 W.

Compare this product
Manufacturer-sourced. Core specifications were checked against 1 verified official source — last verified . How we verify data

MikroTik CRS320-8P-8B-4S+RM specifications

Verified MikroTik CRS320-8P-8B-4S+RM specifications
ManagedYes
PoE budget963 W
Psu Included Watts600
Psu Max Watts1,150
Total Ethernet ports17
SFP+ ports4
Ethernet ports8 × 1 GbE · PoE+ (802.3at); 8 × 1 GbE · PoE++ (802.3bt); 1 × 1 GbE

Where this product fits

Check port count, link speeds, management, uplinks, and PoE capacity against every device you plan to connect.

Compare more network switchesCalculate PoE budgetBuild and validate a complete network

Deterministic checks

Access point compatibility

Results check port availability, Ethernet speed, PoE standard, and the declared total PoE budget. Manufacturers are grouped for faster scanning; expand one to inspect every rule.

TP-Link

3 products

210
TP-Link Omada EAP610Compatible
  • The required Ethernet port is available at the required speed and power standard.
  • The devices may draw up to 14.2 W from a 963 W budget, leaving 948.8 W headroom.
TP-Link Omada EAP650Compatible
  • The required Ethernet port is available at the required speed and power standard.
  • The devices may draw up to 15.5 W from a 963 W budget, leaving 947.5 W headroom.
TP-Link Omada EAP773Warning
  • TP-Link Omada EAP773 requires 10000 Mbps, but only a 1000 Mbps compatible port remains.
  • The devices may draw up to 25.94 W from a 963 W budget, leaving 937.06 W headroom.

Ubiquiti

9 products

270
UniFi U6 MeshCompatible
  • The required Ethernet port is available at the required speed and power standard.
  • The devices may draw up to 13 W from a 963 W budget, leaving 950 W headroom.
UniFi U6 ProCompatible
  • The required Ethernet port is available at the required speed and power standard.
  • The devices may draw up to 13 W from a 963 W budget, leaving 950 W headroom.
UniFi U6 EnterpriseWarning
  • UniFi U6 Enterprise requires 2500 Mbps, but only a 1000 Mbps compatible port remains.
  • The devices may draw up to 22 W from a 963 W budget, leaving 941 W headroom.
UniFi U7 LiteWarning
  • UniFi U7 Lite requires 2500 Mbps, but only a 1000 Mbps compatible port remains.
  • The devices may draw up to 13 W from a 963 W budget, leaving 950 W headroom.
UniFi U7 OutdoorWarning
  • UniFi U7 Outdoor requires 2500 Mbps, but only a 1000 Mbps compatible port remains.
  • The devices may draw up to 19 W from a 963 W budget, leaving 944 W headroom.
UniFi U7 ProWarning
  • UniFi U7 Pro requires 2500 Mbps, but only a 1000 Mbps compatible port remains.
  • The devices may draw up to 21 W from a 963 W budget, leaving 942 W headroom.
UniFi U7 Pro MaxWarning
  • UniFi U7 Pro Max requires 2500 Mbps, but only a 1000 Mbps compatible port remains.
  • The devices may draw up to 25 W from a 963 W budget, leaving 938 W headroom.
UniFi U7 Pro XGWarning
  • UniFi U7 Pro XG requires 10000 Mbps, but only a 1000 Mbps compatible port remains.
  • The devices may draw up to 22 W from a 963 W budget, leaving 941 W headroom.
UniFi U7 Pro XG WallWarning
  • UniFi U7 Pro XG Wall requires 10000 Mbps, but only a 1000 Mbps compatible port remains.
  • The devices may draw up to 22 W from a 963 W budget, leaving 941 W headroom.
